Pylontech 48-volt 3.5kWh Lithium Battery (US3000C)

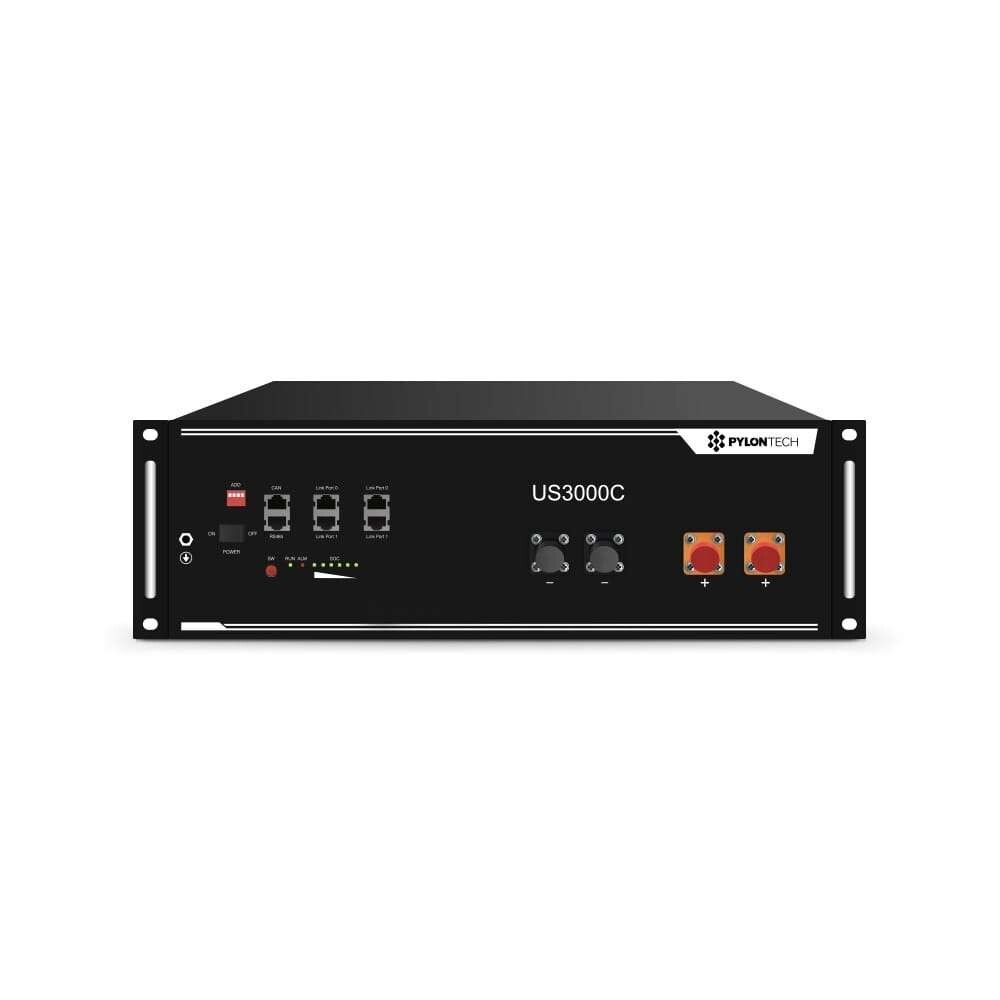

Pylontech US3000C 48V 74Ah Rack Mounted LiFePO4 Battery Module

Each Battery comes with a 180MM long interlinking Kit to connect batteries in Parallel.

US3000C is the latest version HESS battery system designed by Pylontech. It's long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.

Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.

Features:

Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
Usable capacity of 3.37kWh @ 48 VDC
Charge / Discharge - Max Continuous 37A, Peak 1. 74 -89A @ 60 Sec. Peak 2. 90-200A @ 15 Sec.
Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)
Compact and fashionable 19" rack design to suit bracket, rack or cabinet installations
Modular design gives the you the power to design systems from 3.5kWh to a commercial sized 1.704MWh
Compatible with many available Hybrid inverters
Backwards Compatible with existing US series products
Pre-charge function to pretect ESS from surge currents
Safety Cert. CE,TüV, UL, RoHS, UN38.3, IEC62619, IEC62040, IEC62477, IEC61000-6-2,IEC61000-3
Communication Protocols: CAN, RS485, RS232
15+ Year Design Life
10 year Warranty
